3.5 Inch Raspberry Pi 4 Touch Screen 480*320 TFT LCD Display ABS Case Enslosure For Rasberry Pi3 Model B 4B 3B 3B+ Touchscreen
30.37$ – 42.29$
3.5 Inch Raspberry Pi 4 Touch Screen 480*320 TFT LCD Display ABS Case For Raspberry Pi 4B 3B 3B+
Specification:

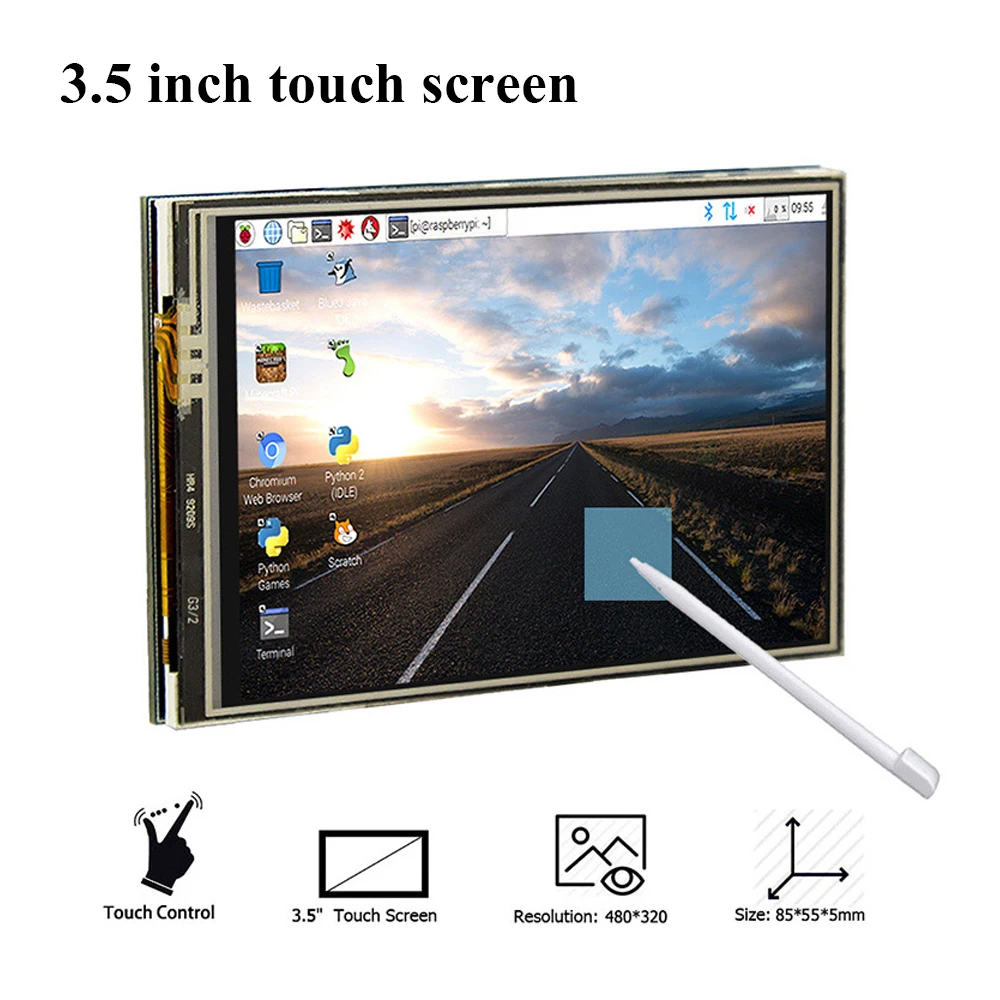

1. 320×480 resolution
2. Resistive touch control
3. Supports any revision of Raspberry Pi (directly-pluggable)
4. Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+,4B versions
5. Size perfectly fits the Pi
6. High quality immersion gold surface plating

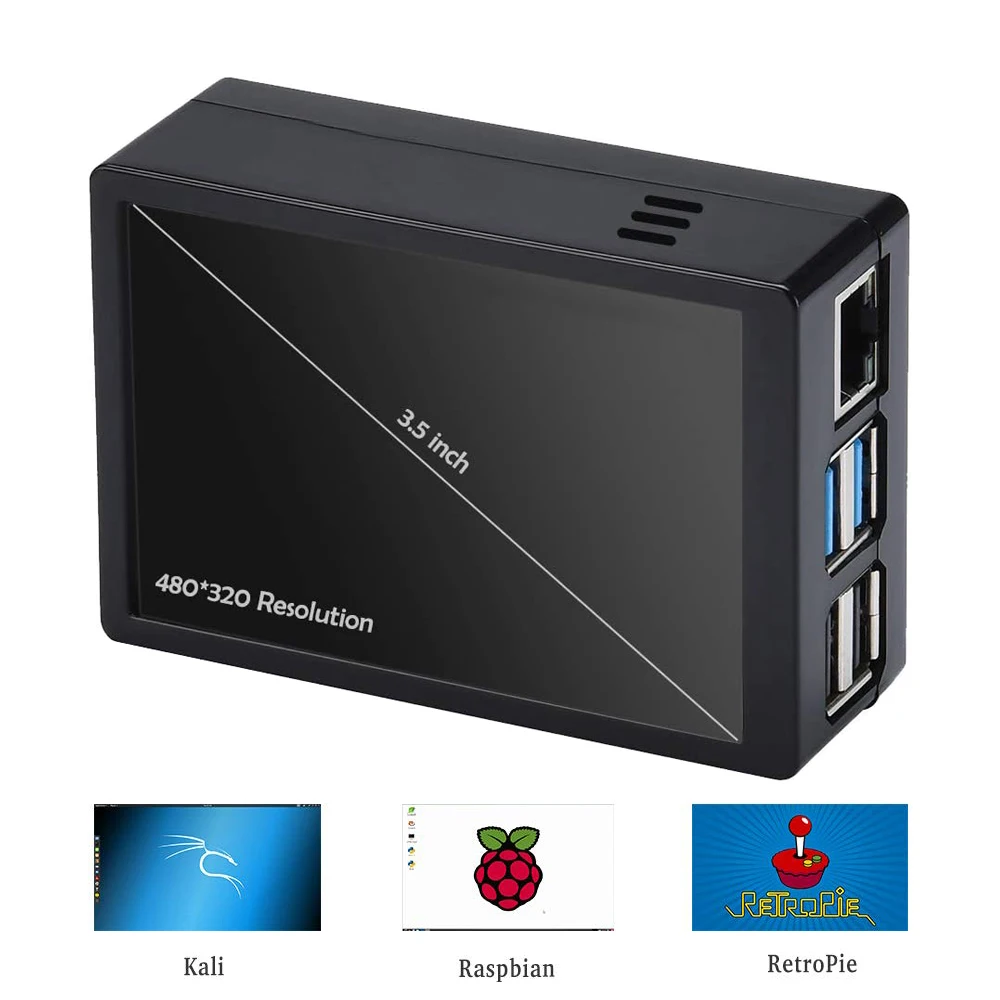

7. Supports Raspbian system, ubuntu system ,kali Linux system
How to install the screen driver
Step 1, install the latest official image of various systems
(1)Download the latestRaspbian/Ubuntu Mate/Kali-linux/Retropieimage from the official
(2) Format the Micro SD card using SDFormatter
(3) Use Win32DiskImager to burn the official image to the Micro SD card

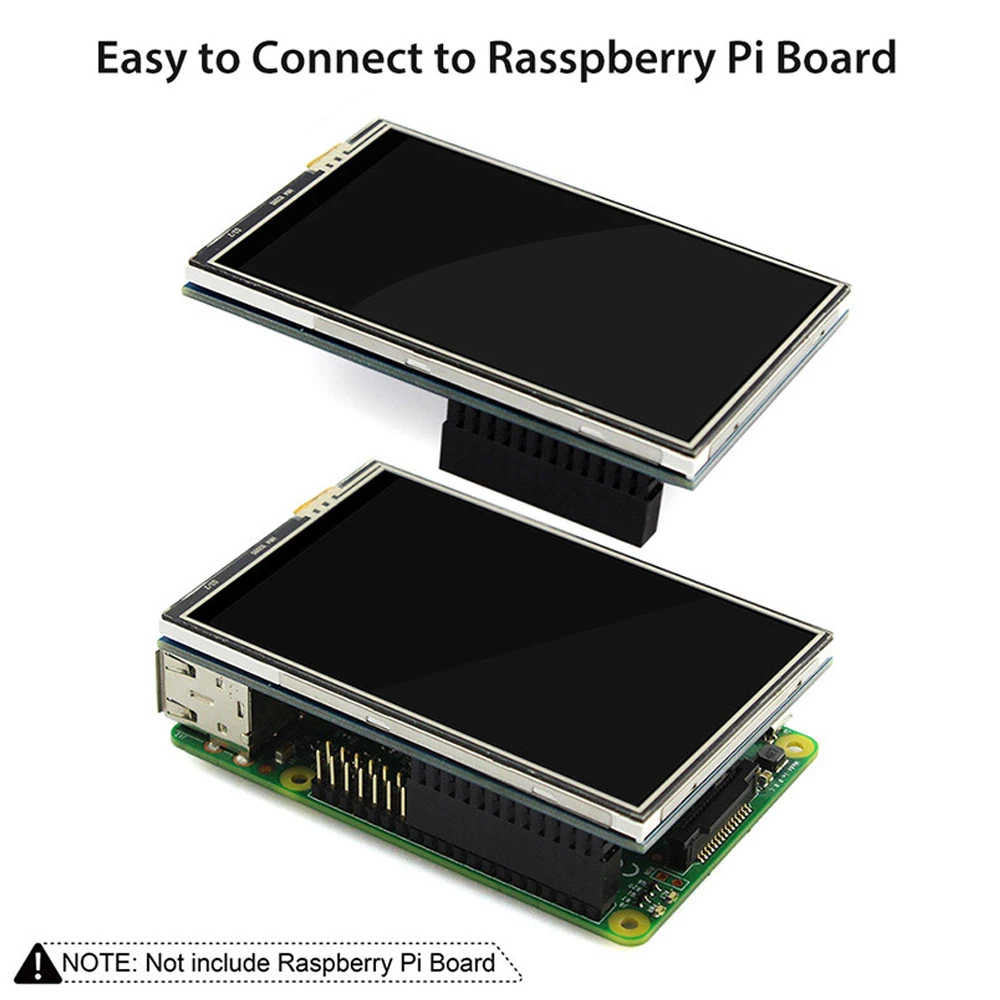

Step 2, connect with the Raspberry Pi
Align right-side to insert the LCD screen, Plug-in MicroSD card, connect network and power
Step 3, install the LCD driver
Install on the Raspbian system (the Raspberry Pi needs to connect to the Internet)
(1) Log in to the Raspberry Pi terminal(SSH remote login user name and password, see the
image download of the Download Resources)
(2) Execute the following command to get the LCD driver and install it (after copying, click the right mouse button in the Putty window to paste):
sudo rm -rf LCD-show
git clone //github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD35-show
You can also refer to this link to get detail steps of driver installation:
//www.lcdwiki.com/3.5inch_RPi_Display
Additional information
Color | Option 1, Option 2, Option 3, Option 4, Option 5 |
---|---|
Brand Name | Erilles |
Accessory Type | LCD Screen |
Origin | CN(Origin) |
Size | 3.5 inch Touchscreen |
Resolution | 480*320 LCD |
Touch Function | Support |
Type | TFT |
Case Material | ABS Case |
Case Color | Black Enclosure |
Compatible with | Rasberry Pi4 4B 3B 3B Plus |
