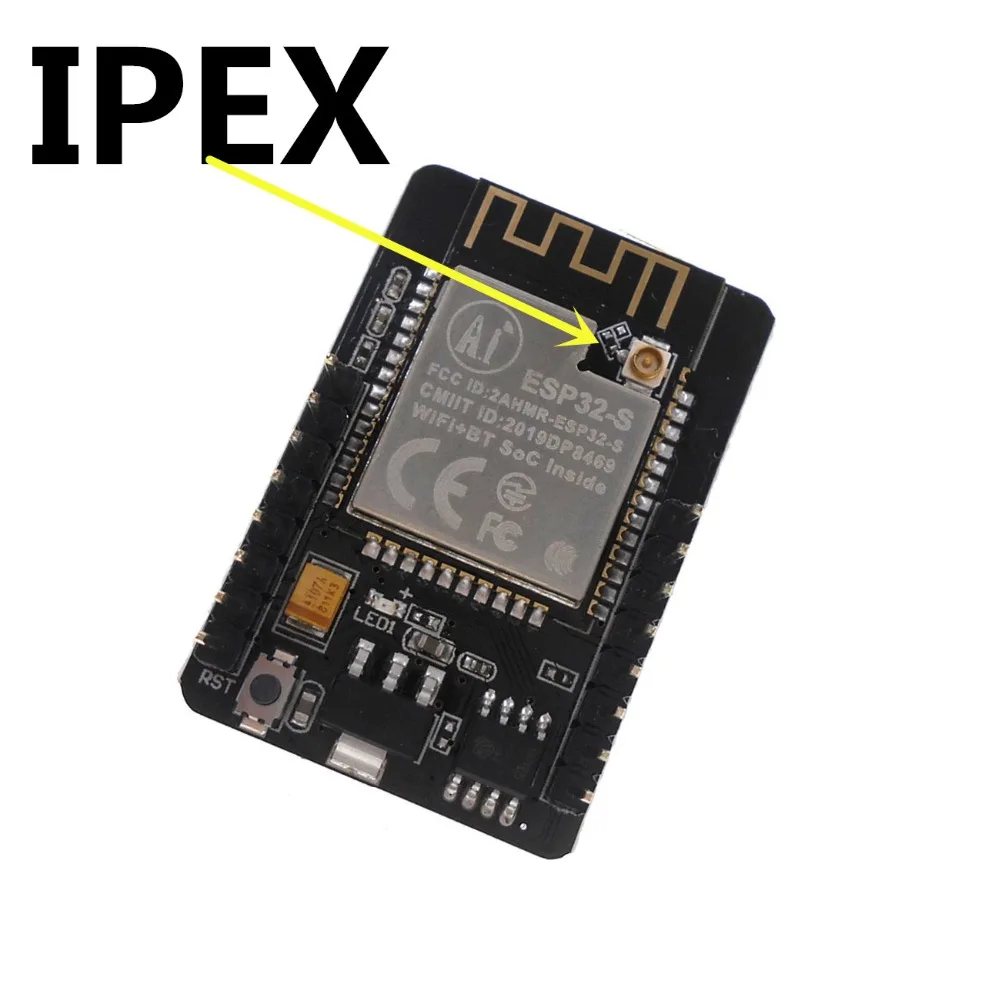

ESP32-CAM IPEX External antenna WiFi Bluetooth Module Camera Module esp32 Development Board OV2640 2MP
1.38$ – 14.38$
|
|
  2.4G stick rubber antenna 11cm+IPEX extension cable 15cm+nut (3pcs)
|
characteristic:
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
Using low-power dual-core 32-bit CPU, can be used as an application processor
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support serial local upgrade and remote firmware upgrade (FOTA)
Overview:
ESP32-CAM has the most competitive small-size camera module in the industry. The module can work independently as the smallest system, with a size of only 27*40.5*4.5mm, and a deep sleep current of at least 6mA.
ESP-32CAM can be widely used in various IoT occasions, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM adopts DIP package, which can be used directly by plugging in the bottom plate, realizing the rapid production of products, providing customers with a highly reliable connection method, which is convenient for various IoT hardware terminal occasions.
Module model: ESP32-CAM
Package: DIP-16
Size: 27*40.5*4.5 (±0.2) mm
SPI Flash: default 32Mbit
RAM: internal 520KB + external 8MB PSRAM
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi: 802.11 b/g/n/e/i
Support interface: UART, SPI, I2C, PWM
Support TF card: Maximum support 4G
IO port: 9
Serial port rate: default 115200 bps
Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
Frequency range: 2400 ~2483.5MHz
Antenna form: Onboard PCB antenna, gain 2dBi
Transmit power:
802.11b: 17±2 dBm (@11Mbps)
802.11g: 14±2 dBm (@54Mbps)
802.11n: 13±2 dBm (@MCS7)
Receive sensitivity:
CCK, 1 Mbps: -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power consumption:
Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: The lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Power supply range: 4.75-5.25V
Working temperature: -20 ℃ ~ 70 ℃
Storage environment: -40 ℃ ~ 125 ℃, <90%RH
ESP32-CAM module picture output format rate
Minimal system diagram:
850nm
160 degrees
70 degrees
Additional information
| Color | 160 degrees, 70 degrees, 850nm, antenna, ESP32 160 degrees, ESP32 70 degrees, ESP32 850nm, IPEX kit, veneer |
|---|---|
| Brand Name | JISDA |
| Model Number | ESP32-CAM |
| Origin | CN(Origin) |
| Compatible | Game Console |
