N20 3V 6V 12V Electric Micro DC Geared Motor 12 Volts Low Speed 15 To 1000RPM Metal Motor Gear Adjustable Speed Reversed
৳ 248.97 – ৳ 362.22
The following are the tools for making the auto-rotating screw and the switch for the remote control lamp using the N20 geared motor.
Mini DC Gear Motor 3V 6V 12V Low RPM 15 To 1000RPM With Metal Gears Reversed Adjustable Speed For Smart Toys Car DIY Robot Motors
The parameters of the motor
Rated voltage 3v ;
No load speed 15/30/50/60/100/200/300/500/1000rpm/min
Rated voltage 6v
No load speed 15/30/50/60/100/200/300/500/1000rpm/min
Rated voltage 12v ;
No load speed 30/60/100/200/300/500/1000rpm/min
If the motor is connected to a non-rated voltage input, all parameters of the motor will change.

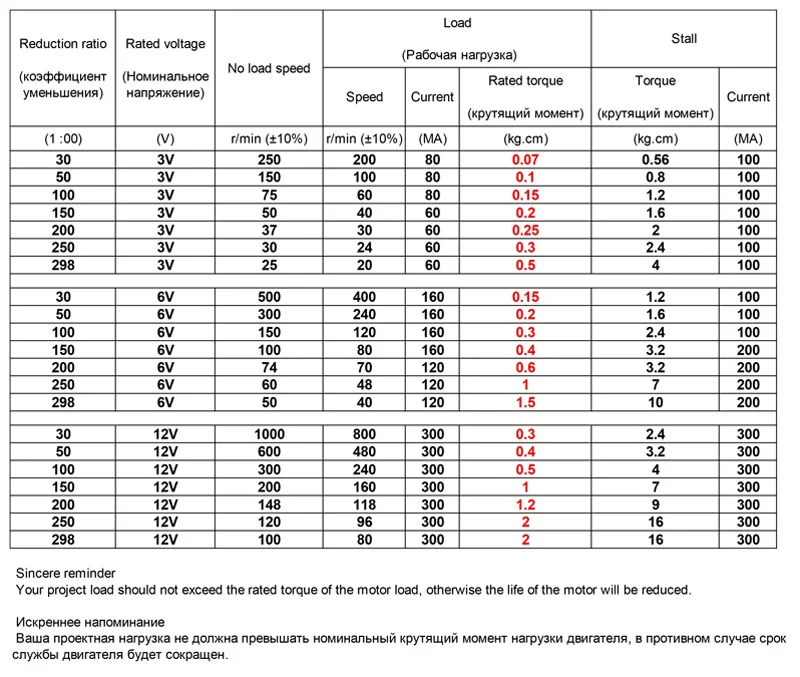

The parameter table of the motor

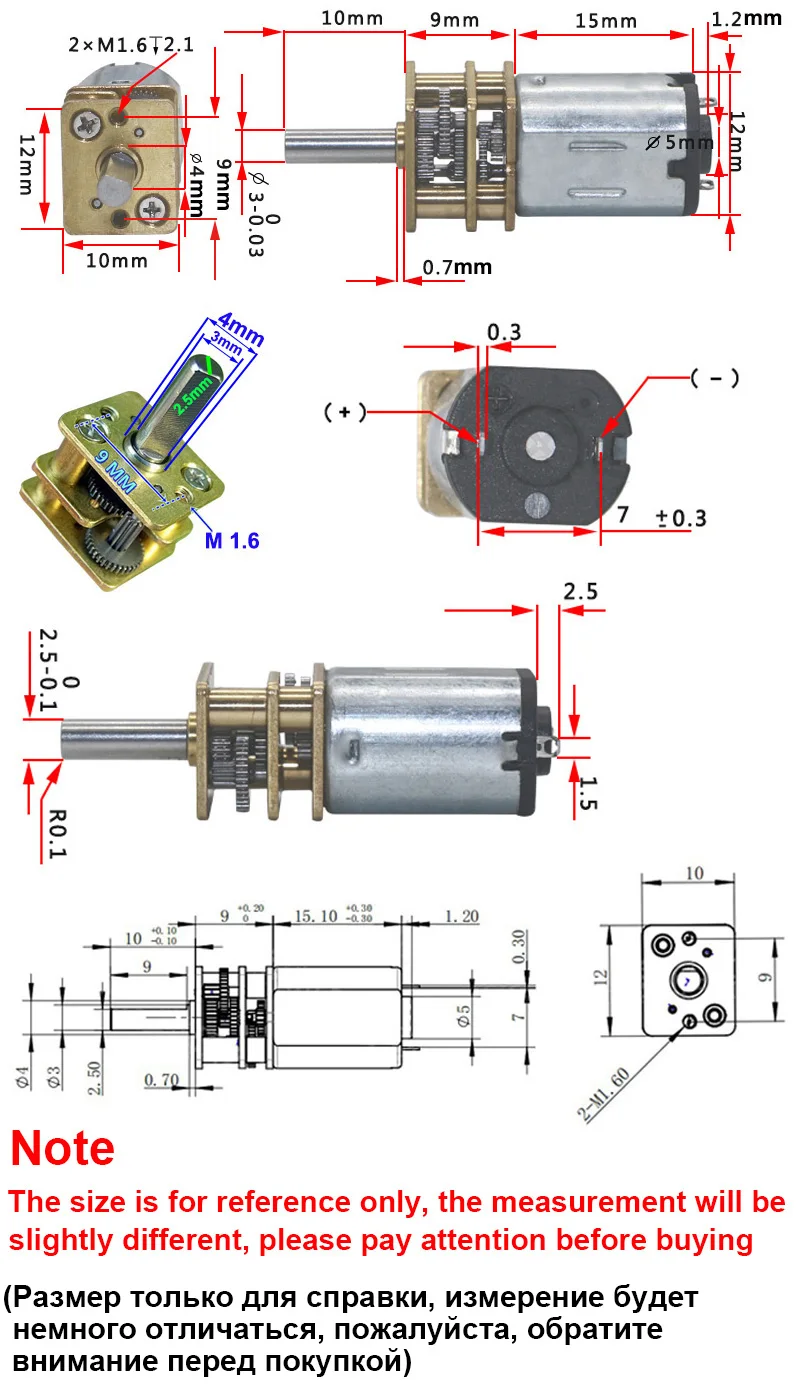

The size is for reference only, the measurement will be slightly different,please pay attention before buying

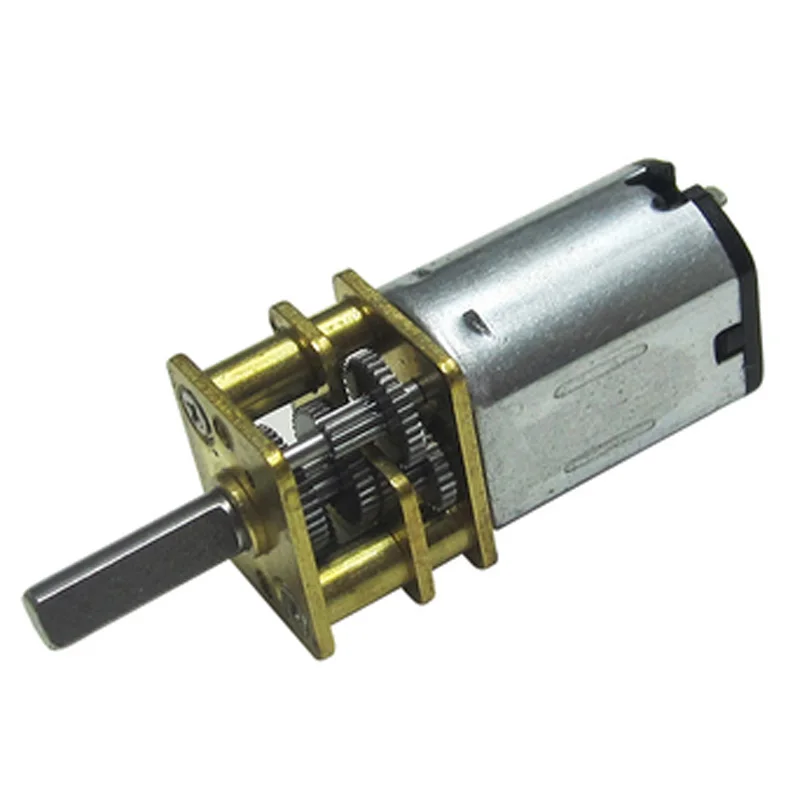

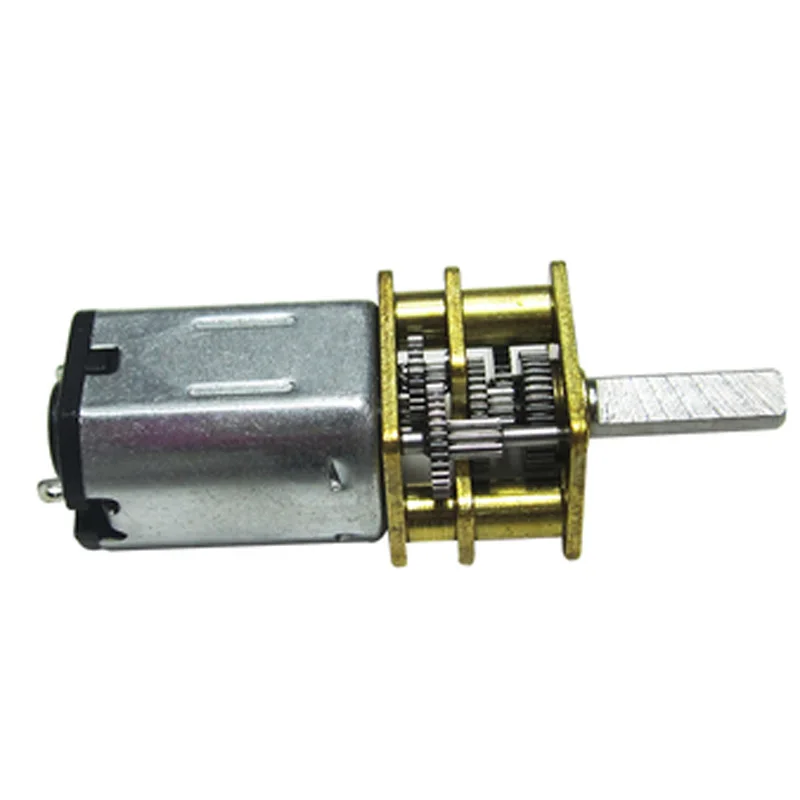

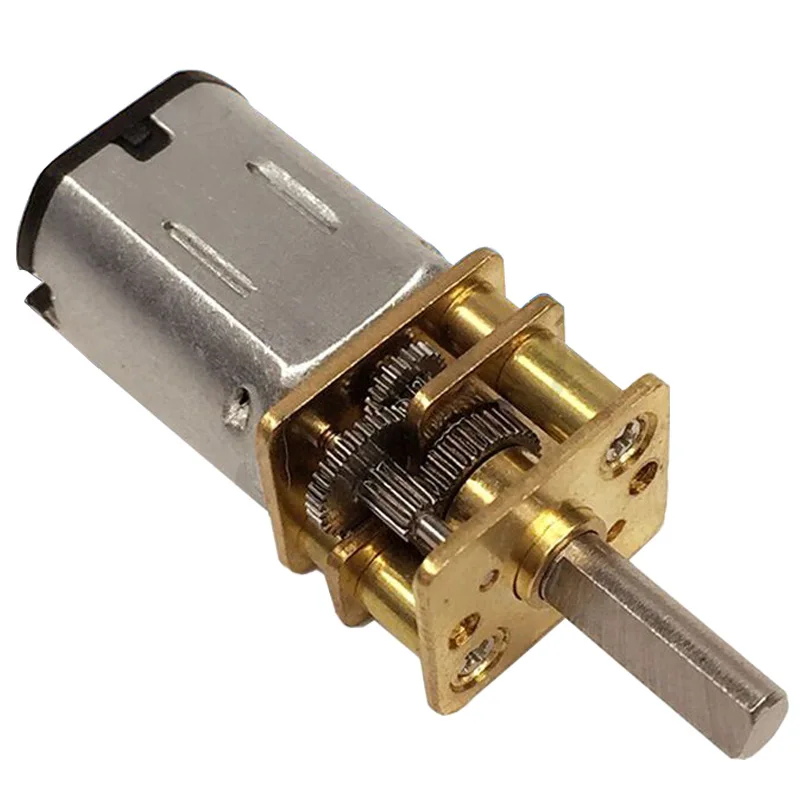

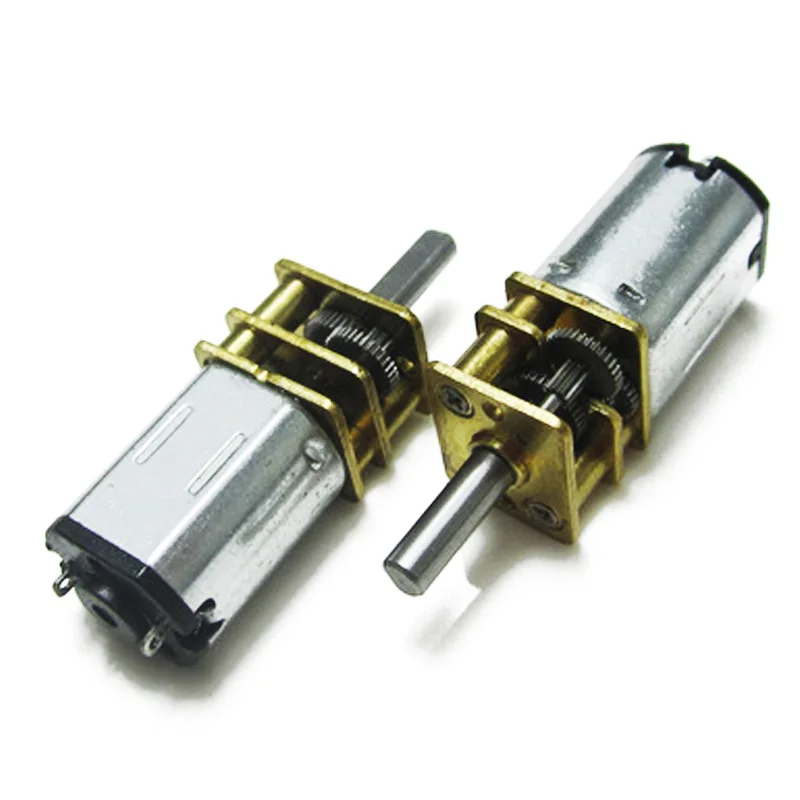

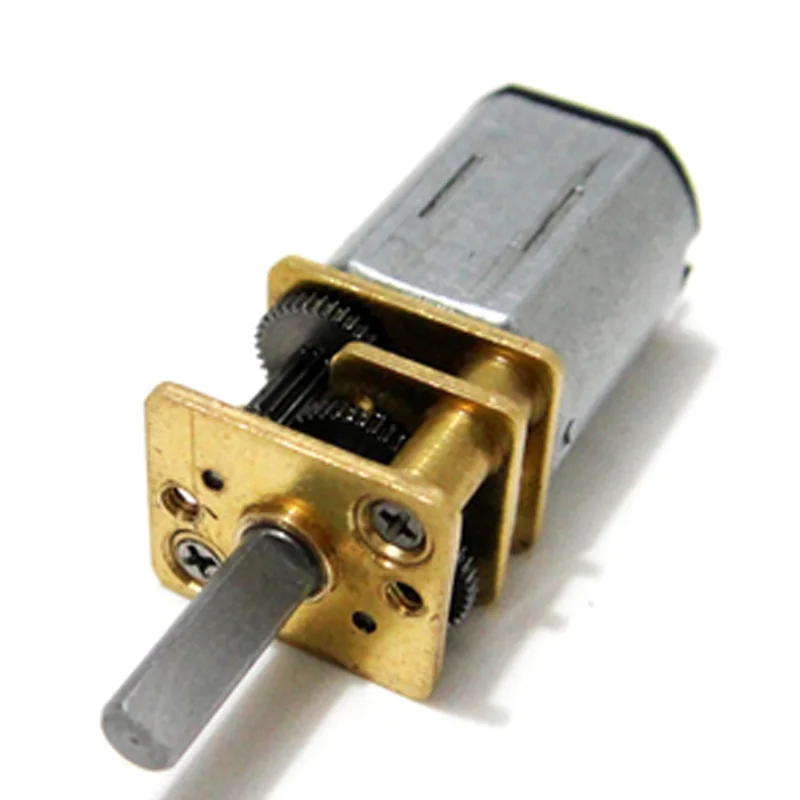

The following is the picture of the motor
Other buyers use this motor for DIY toys
Additional information
| Brand Name | FAR ALONG |
|---|---|
| Continuous Current(A) | Standard current |
| Model Number | JGA12-N20 |
| Protect Feature | Drip-proof |
| Construction | Permanent Magnet |
| Usage | Home Appliance |
| Direction of rotation | gear motor forward reversing |
| Rated voltage | 3v 6v 12v |
| Alias 1 | small 3v 6v 12v motors |
| Alias 3 | diy gear motor |
| Alias 5 | n20 mini micro metal gear motor |
| Origin | CN(Origin) |
| Certification | ROHS |
| Commutation | Brush |
| Type | Gear Motor |
| Output Power | Standard |
| Torque | 0.07 To 2 kg.cm |
| Efficiency | IE 1 |
| Function | Adjustable Speed |
| Product alias | dc gear motor in dc motor |
| Alias 2 | motor gear motor dc |
| Alias 4 | mini dc motor 3v 6v 12v |
| Application | micro dc motors for toys |
