Mini ENC28J60 Ethernet LAN Network Module 51 AVR SPI PIC STM32 LPC

5.26$

Sold By: Shop Manager

In stock

Compare

ENC28J60 LAN Product Description:

Brand new and high quality.

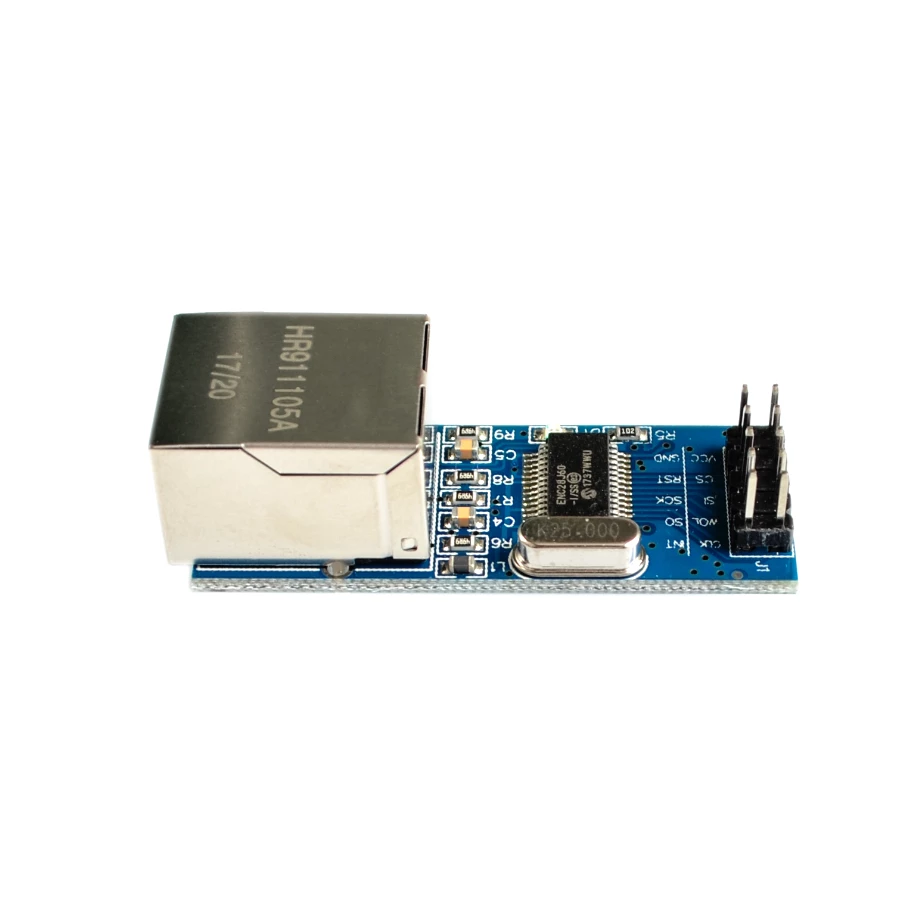

chip board ENC28J60-I/SO.

the board 25MHZ crystal.

the network interface board HR911105A.

3.3 V power supply pin.

Size:5.9cm x 3.5cm – 2.32inch x 1.38inch.

Debug reminder:

1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section;

2, cross the network cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 cross, and then do not understand that there are pictures Baidu);

3, the module and the MCU connection should pay attention to the connection of each line is reliable (the surface is not even connected to the good);

4, and the MCU port IO to confirm that is right;

5, the program recompile, download, confirm whether to download! STM32 and 51 IO

Wiring instructions:

############STM32 connection ##########

STM32f103VBT6 ENC28J60 module or other stm32

PC10———– RESET

PC12——— CS //PC12 pull-up output mode

//SPI1-

PA5———– SCK / / output mode

PA6———– SO / / input mode

PA7———– SI / / output mode

######51 microcontroller ########### //———————————

Change IP address and MAC address in uipopt.h

192.168.1.100

//——————————— port configuration in spi.h.

STC12C5A60S2 DIP OSC:18.432Msbit CSN = P1^0; / / 28J60– CS (SS)

Sbit SIN = P1^1; / / MOSI

Sbit SON = P1^2; / / MISO

Sbit SCKN = P1^3; / / SCK

Sbit RSTN = P1^4; / / RST

Sbit INTN = P3^3; / / INT

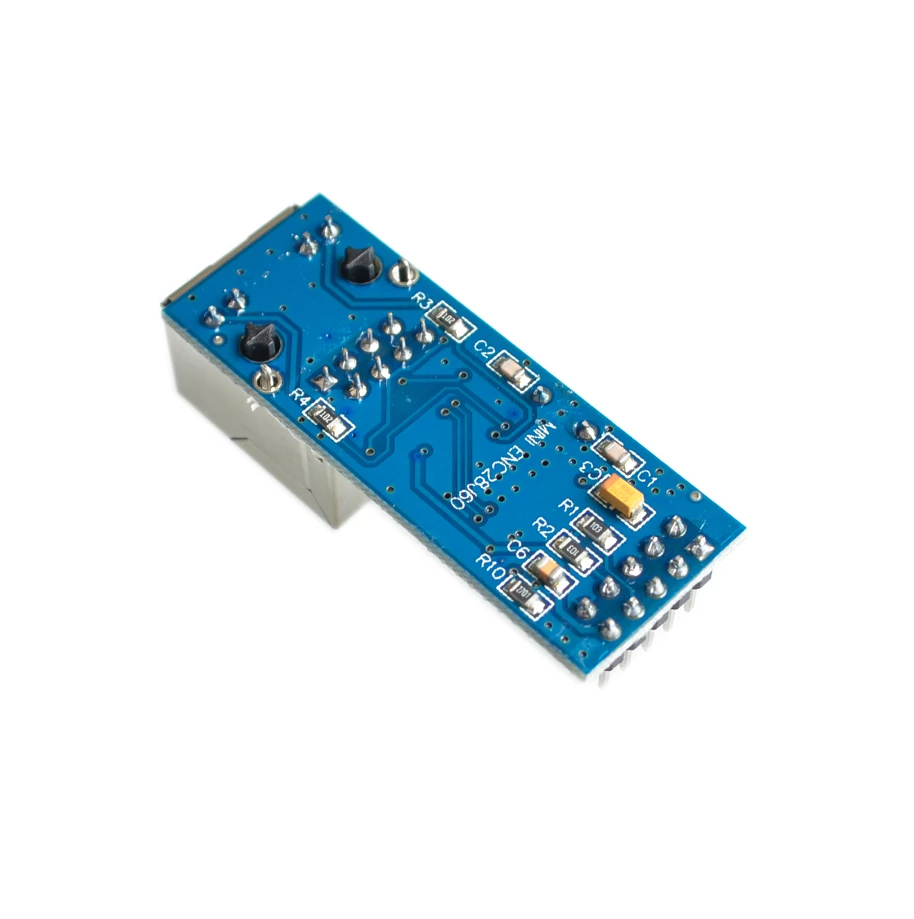

ENC28J60 Mini Product Description:

1. Chip board ENC28J60/SS.
2. The board 25MHZ crystal.
3. The network interface board HR911105A.
4. 3.3V power supply pin.

5. Size: 48.8 (mm) x 18.5 (mm).

Mini ENC28J60 Ethernet LAN Network Module 51 AVR SPI PIC STM32 LPC

Mini ENC28J60 Ethernet LAN Network Module 51 AVR SPI PIC STM32 LPC

Mini ENC28J60 Ethernet LAN Network Module 51 AVR SPI PIC STM32 LPC

Mini ENC28J60 Ethernet LAN Network Module 51 AVR SPI PIC STM32 LPC



Additional information

Brand Name

MINGYUANDINGYE

Origin

CN(Origin)

Condition

New

Type

Logic ICs

Application

Computer

Operating Temperature

0-85

Supply Voltage

3-5v

Dissipation Power

1w

Package

TQFP

is_customized

Yes
