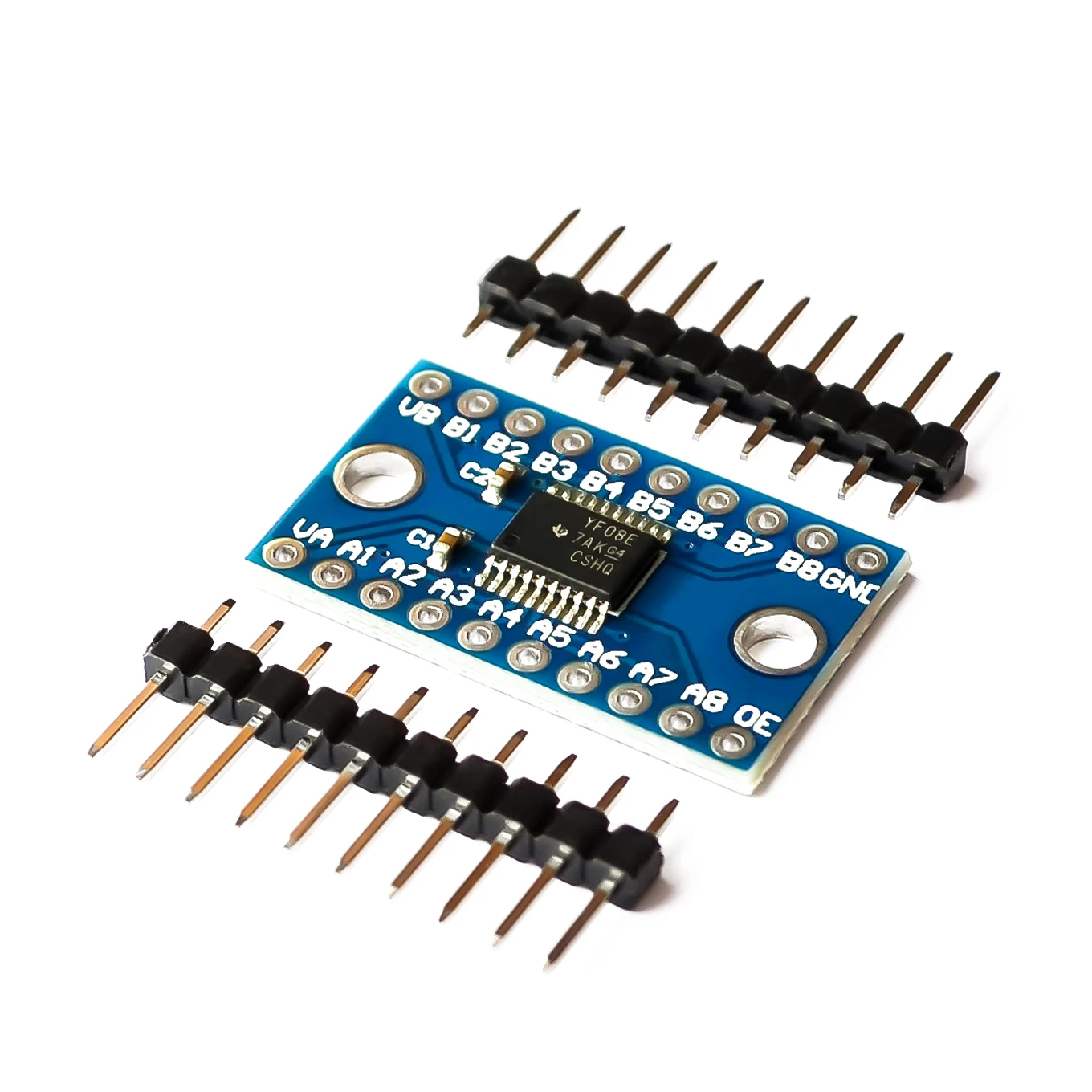

3.3V 5V TXS0108E 8 Channel Logic Level Converter Convert TTL Bi-directional Mutual Convert
0.87$
Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.
Features
- 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
- Voltage level: 1.8V-6V
- Dimension: 21mm x 15mm
How to Use
In the case of translating between 3.3V and 5V system:
- VCCA connects to 3.3V power supply
- VCCB connects to 5V power supply
- GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
- When Ax has TTL 3.3V input, Bx will get TTL 5V output
- When Bx has TTL 5V input, Ax will get TTL 3.3V output
- NO direction control required
Additional information
| Brand Name | MINGYUANDINGYE |
|---|---|
| Origin | CN(Origin) |
| Condition | New |
| Type | Voltage Regulator |
| Application | Computer |
| Supply Voltage | 1 |
| Dissipation Power | 1 |
| is_customized | Yes |
