Features:

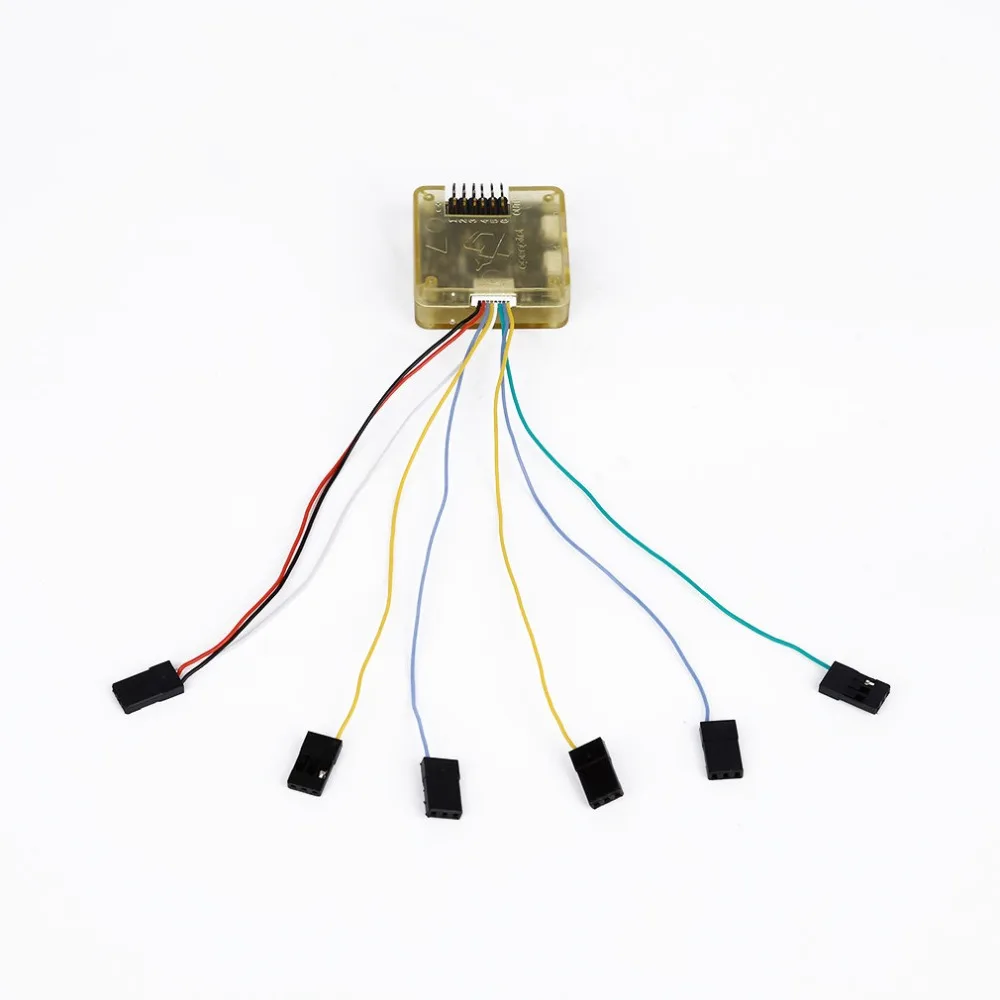

Suitable for MINI CC3D, standard CC3D, CC3D EVO
Specifications:
Material: super soft silicone
Color Function JST-SH Pin Servo connector plug
Black Ground 1 1
Red Power to RC RX-(VCC Unregulated) 4.8V-15V 2 1
White PWM signal 1 or combined PPM 3 1
Blue PWM signal 2 4 2
Yellow PWM signal 3 or PWM output channel 7 5 3
Green PWM signal 4 or PWM output channel 8 6 4
Orange PWM signal 5 or PWM output channel 9 7 5
Purple PWM signal 6 or PWM output channel 10 8 6
Black 1 GND GND GND GND
Red 2 4.8V-15V PWR out (VCC unregulated) PWR out (VCC unregulated) PWR out (unregulated star)
Blue 3 3.3V TX SCL
Orange 4 3.3V(5V Tolerant) RX SDA TX (signal)

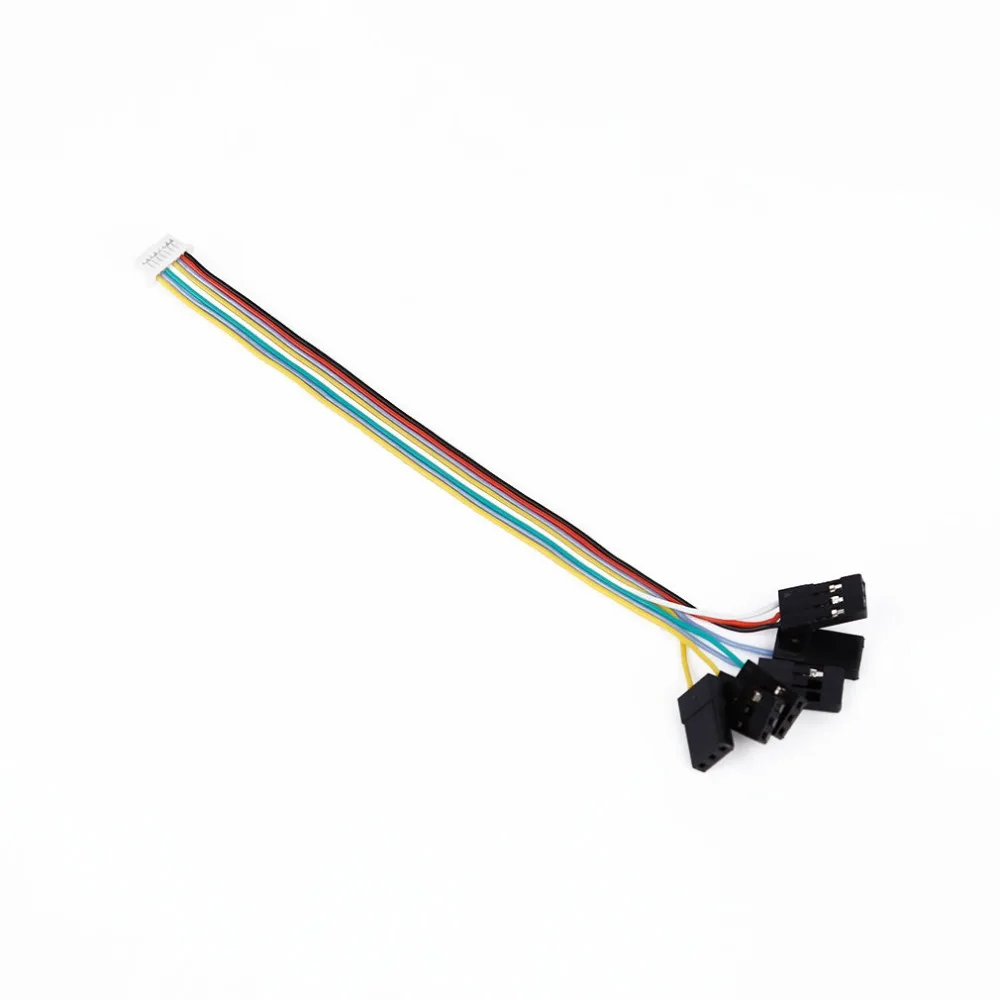

Total Cable length: 150mm/5.9 inch
Package size: 246 x 100mm/9.7 x 3.9 inch

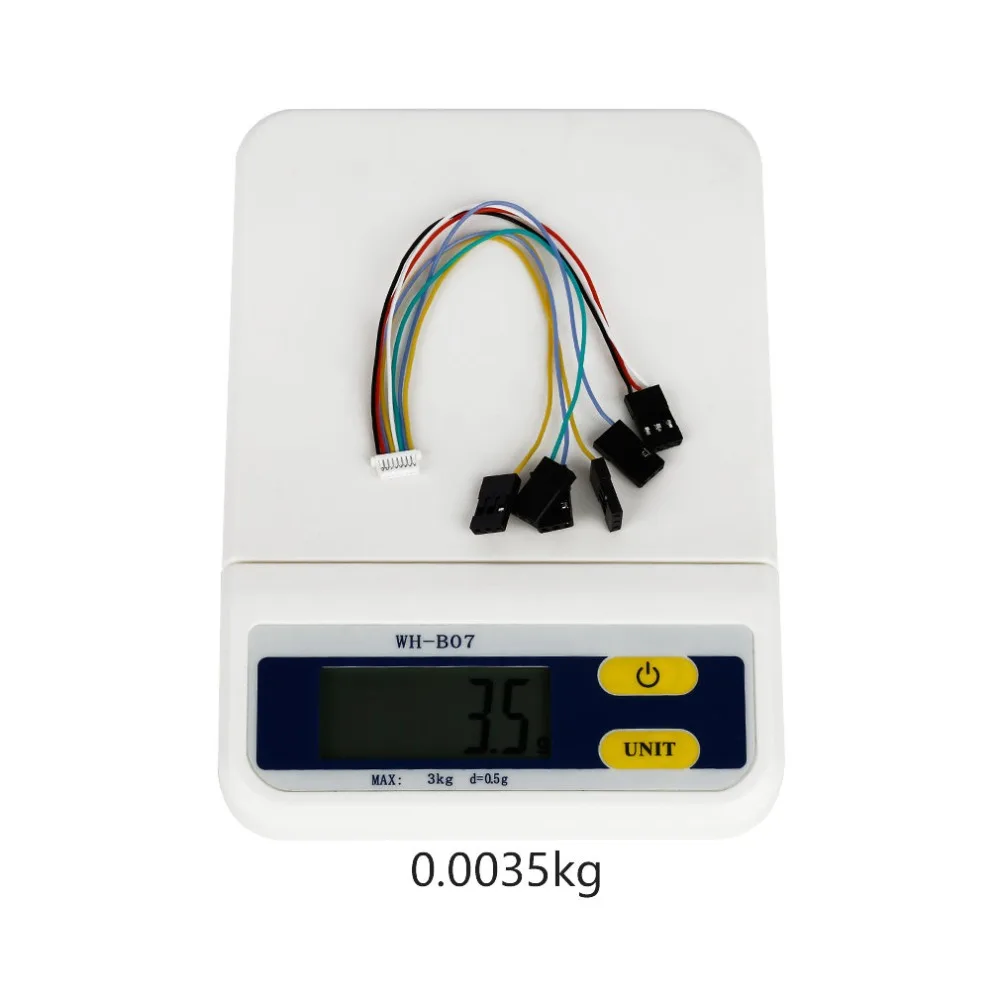

Net Weight: 3.5g
Package weight: 8.5g
Package Includes:

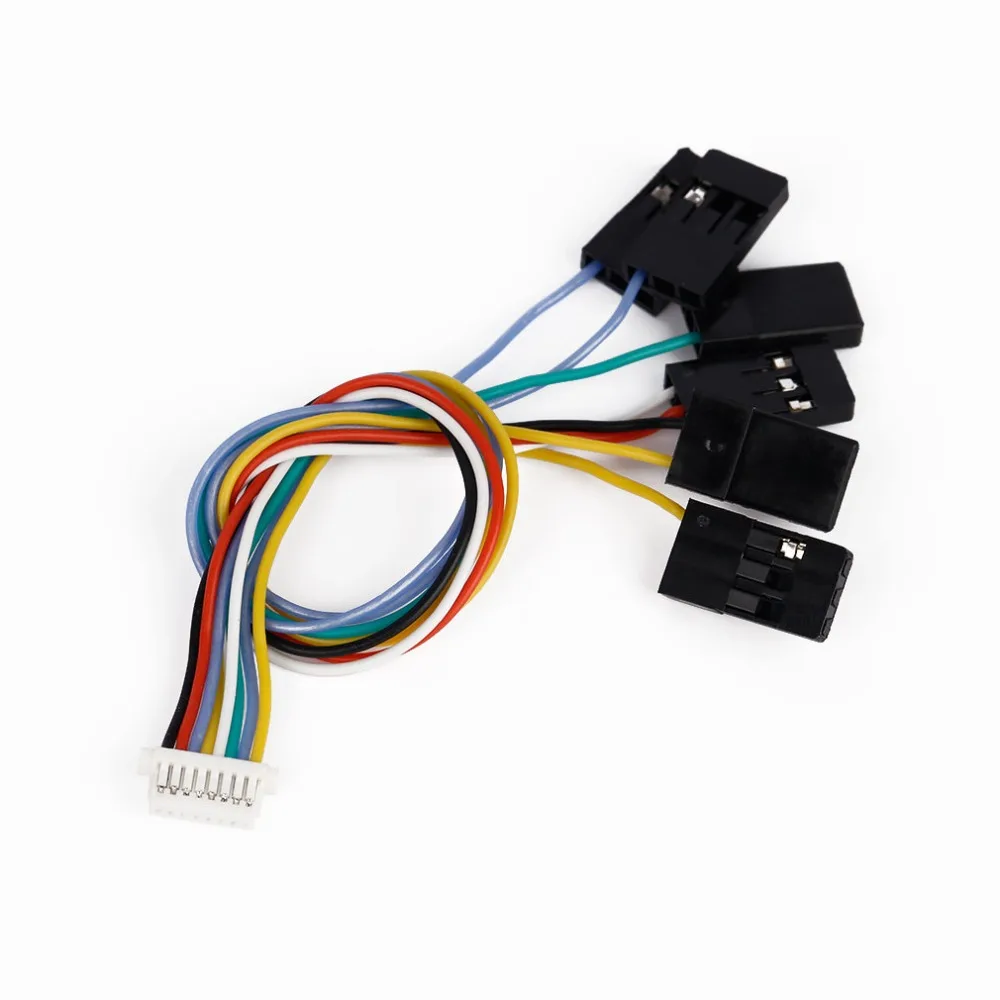

1 x 6 in 1 CC3D Cable Set
Additional information
| Brand Name | QYWWRC |
|---|---|
| Material | Composite Material |
| For Vehicle Type | Helicopters |
| Upgrade Parts/Accessories | CC3D Cable Set |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | CC3D Cable Set |
| Origin | CN(Origin) |
| Recommend Age | 12+y |
| RC Parts & Accs | Engines |
| Remote Control Peripherals/Devices | CC3D Cable Set |
| Technical parameters | Value 3 |
| Use | Vehicles & Remote Control Toys |
