Product introduction:

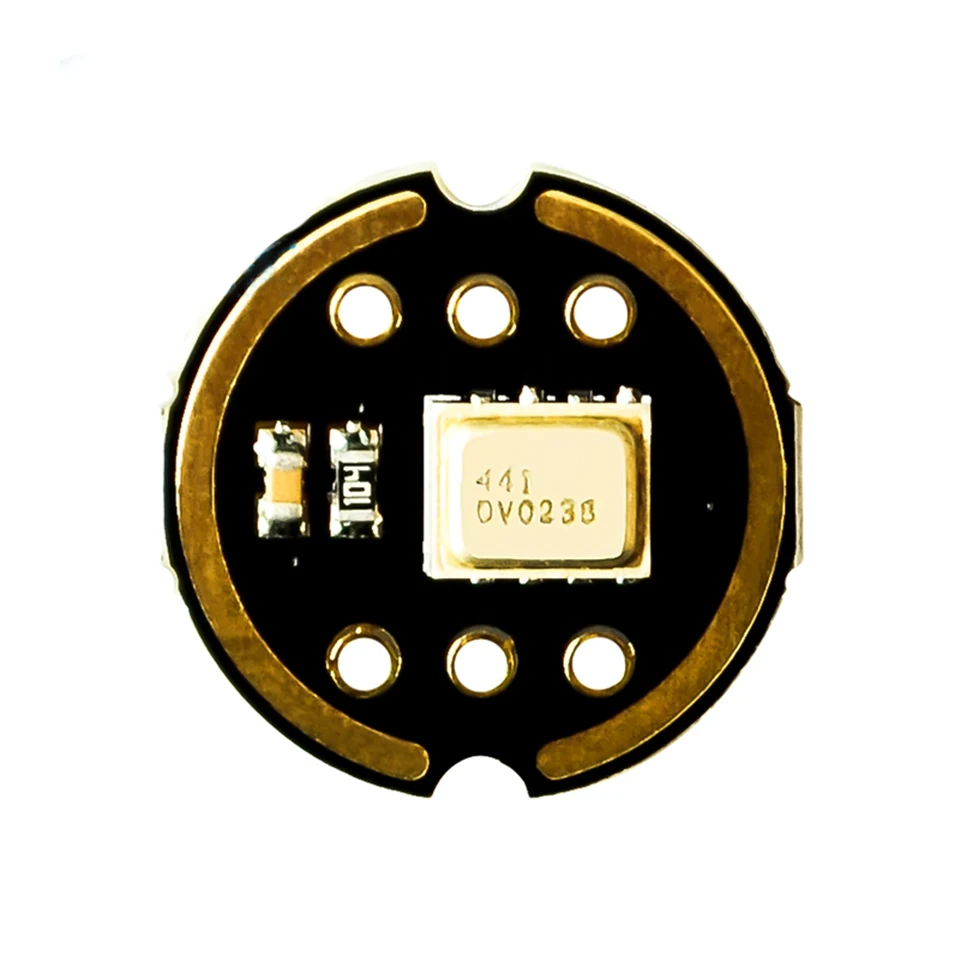

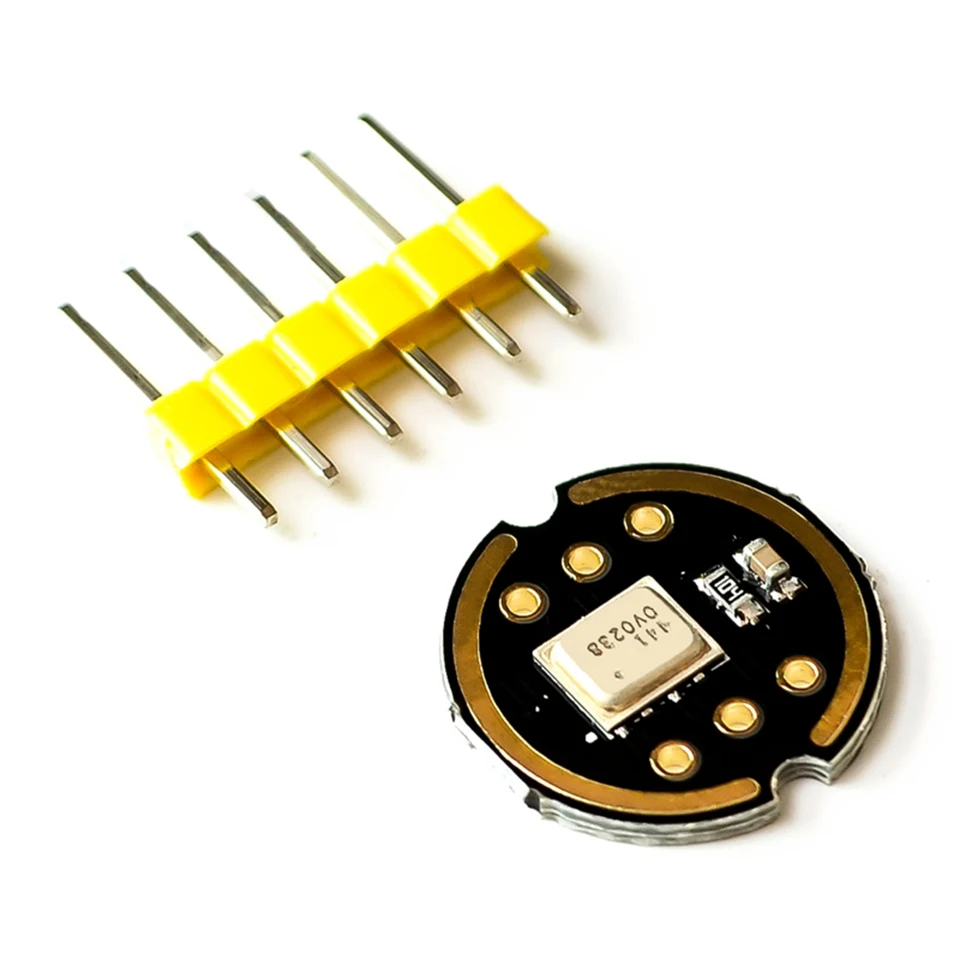

The INMP441 is a high performance, low power, digital output, omnidirectional MEMS microphone with bottom port. The

The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.

Product Features:

1. Digital I2S interface with high precision 24-bit data

2. High signal to noise ratio is 61 dBA

3. High sensitivity – 26 dBFS

4. Stable frequency response from 60 Hz to 15 kHz

5. Low power consumption: low current consumption 1.4 mA

6. High PSR: -75 dBFS

Interface definition:

SCK: Serial data clock for I2S interface

WS: Serial data word selection for I2S interface

L/R: Left/Right channel selection.

When set to low, the microphone outputs a signal on the left channel of the I2S frame.

When set to high level, the microphone outputs signals on the right channel

SD: Serial data output of the I2S interface.

VCC: Input power, 1.8V to 3.3V.

GND: power ground

This product provides tutorials for using ESP32 modules with I2S functionality.

Connect with our ESP32 development board:

INMP441 ESP32 Development Board
SCK >> GPIO14
SD >> GPIO32
WS >> GPIO15
L/R >> GND
GND >> GND
VDD >> VDD3.3
